1616 100w Uv Cob Led 365/385/395nm 60-90 Deg For High Power Curing

1616 100w Uv Cob Led 365/385/395nm 60-90 Deg For High Power Curing
1616 100w Uv Cob Led 365/385/395nm 60-90 Deg For High Power Curing
1616 100w Uv Cob Led 365/385/395nm 60-90 Deg For High Power Curing 1616 100w Uv Cob Led 365/385/395nm 60-90 Deg For High Power Curing 1616 100w Uv Cob Led 365/385/395nm 60-90 Deg For High Power Curing 1616 100w Uv Cob Led 365/385/395nm 60-90 Deg For High Power Curing 1616 100w Uv Cob Led 365/385/395nm 60-90 Deg For High Power Curing

Large Image :  1616 100w Uv Cob Led 365/385/395nm 60-90 Deg For High Power Curing

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW OPTO
Certification: CE/RoHs
Model Number: LN-CVB80UV-P50
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Anti-static Blister packing
Delivery Time: 1-7 working days for samples, 1-4Weeks for quantity Order
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500,000PCS per month
Contact Now

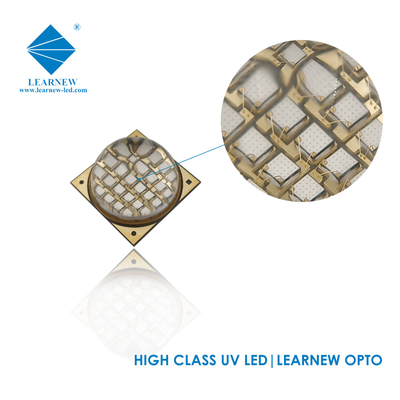

1616 100w Uv Cob Led 365/385/395nm 60-90 Deg For High Power Curing

Description
POWER: 100W IF: 2100mA (Max=3A)
VF: 48-54V WHOLE SIZE: 16*16MM
VIEW ANGLE: 60-90° Lighting Area: R15MM
Highlight:

1616 uv cob led

,

high power curing uv cob led

,

385 nm led chip 100w



Hot sales high quality UVA LEDs cob 1616 100W 365/385/395nm uva 60-90DEG uva leds chips for high power curing



365nm chip Product specification



UV-A POWER Warranty Dominant Wavelength Optical Power IF VF Circuit WHOLE SIZE Lighting Area VIEW ANGLE LENS SUBSTRATE
LN-CVS16UV-P42 100W 10,000Hrs
or 2 years		 365nm 33500-38000mW 2100mA
(Max=3A)		 48-54V 14S3P 16*16MM R15MM 60-90° QUARTZ GLASS LENS ALN Coppering
385nm 40000-48000mW
395nm 42000-50000mW

1616 uva led chip Design Advantage

  • Long life span
  • low thermal resistance
  • High effiency 40%-50%
  • Ingorganic encapsulation
  • High density and intensity
  • Screw free assemble for high power curing use



uv led Appilcation

  • UV curing
  • LED growing market
  • Offset printer
  • 3D printer
  • Exposure machines
  • Inkjet printer

1616 100w Uv Cob Led 365/385/395nm 60-90 Deg For High Power Curing 0

1616 100w Uv Cob Led 365/385/395nm 60-90 Deg For High Power Curing 1

1616 100w Uv Cob Led 365/385/395nm 60-90 Deg For High Power Curing 2
