Product Details:
|
| NAME: | 5050 LED CHIP | POWER: | 0.5w/0.3w/0.2w |
|---|---|---|---|
| IF: | 30-60mA | Dominant Wavelength: | 585-595nm/650-660nm/410-420nm/840-850nm |

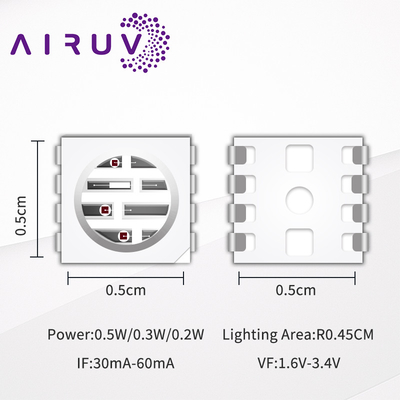

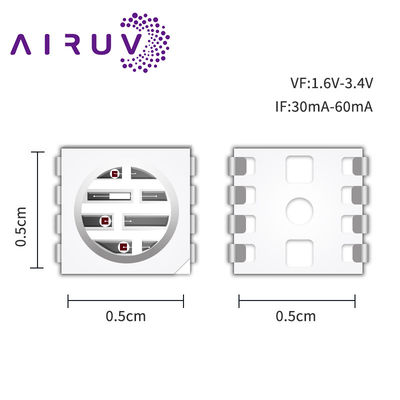

| Optical Power: | 30-50mW/80-100mW/40-60mW | WHOLE SIZE: | 5.0*5.0MM |
| Highlight: | 0.5w 5050 Led Red Light,High Brightness 5050 Led Red Light,Therapeutic Lamp 5050 Led Red Light |
||

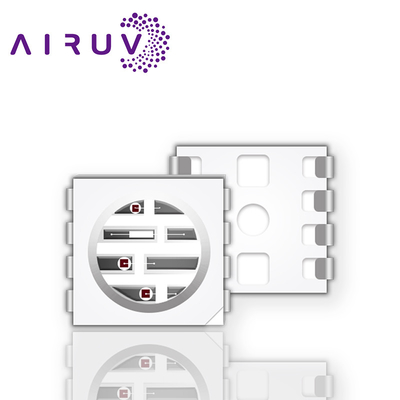

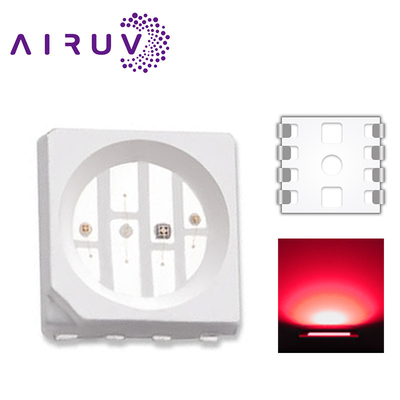

Smd 5050 Rgyir 5050 Smd Led Chip 0.5w 60ma High Brightness 5050 Led Red Light For Therapeutic Lamp
Product parameters
| INFRARED | POWER | Dominant Wavelength | Optical Power | IF | VF | Circuit | WHOLE SIZE | Lighting Area | VIEW ANGLE | LENS | SUBSTRATE | CHIPS | Warranty |
| LN-SMD5050UYFIR-PF0.1-ES10 | 0.5w | 840-850nm | 30-50mW | 30-60mA | 1.6-2.0V | 1S1P*4 | 5.0*5.0MM | R4.5MM | 120° | SILICAN LENS | PCT | VERTICAL (EPILED or EPISTAR) |
2 years |
| 410-420nm | 80-100mW | 3.0-3.4V | |||||||||||
| 650-660nm | 40-60mW | 2.0-2.4V | |||||||||||
| 585-595nm | 40-60mW | 2.0-2.4V | |||||||||||
| LN-SMD5050RGYIR-PF0.1-ES10 | 0.5w | 620-630nm | 40-60mW | 2.0-2.4V | |||||||||
| 520-530nm | 60-80mW | 3.0-3.4V | |||||||||||
| 585-595nm | 40-60mW | 2.0-2.4V | |||||||||||
| 840-850nm | 30-50mW | 1.6-2.0V | |||||||||||
| LN-SMD5050PIR2-PT0.1-EP10 | 0.3w | 840-850nm | 30-50mW | 2.0-2.4V | 1S1P*3 | ||||||||
| 620-630nm | 40-60mW | 2.0-2.4V | |||||||||||
| 840-850nm | 30-50mW | 1.6-2.0V | |||||||||||
| LN-SMD5050IR2-PS005-EP10 | 0.2w | 840-850nm | 40-60mW | 1.6-2.0V | 1S1P*2 | ||||||||
| 620-630nm | 40-60mW | 2.0-2.4V | |||||||||||
5050 SMD LED CHIP Design Advantage
1,Long life span
2,low thermal resistance
3,High effiency 20%+
4,Ingorganic encapsulation
5,High density and intensity
6,Super power for IR series
7,Narrow peak wavelength
IR LED CHIP Appilcation
1,Red light
2,Grow light
3,Cameras
4,3D printing
5,Virtual Reality
6,therapeutic light
7,Machine Vision
8,Finger-vein Biometrics
